PVC Foil for Cards: Metallic, Holographic & Full-Face Foil Card Applications

When designing premium PVC cards, the material used on the card surface can make a significant difference to the final appearance.

Traditional PVC card sheets provide a reliable base for printing and lamination, but manufacturers looking for a more distinctive appearance may need additional decorative effects such as metallic, rainbow, brushed aluminum, or holographic finishes.

This is where PVC Foil for Cards can provide an effective solution.

PVC Foil is a laminated card material designed to combine printing compatibility with decorative visual effects. It can be used to manufacture full-face foil cards, metallic PVC cards, holographic cards, premium membership cards, VIP cards, gift cards, loyalty cards and promotional cards.

For professional card manufacturers, choosing the right PVC foil is not only about appearance. Printing compatibility, thickness, lamination performance, surface finish and dimensional stability are also important factors.

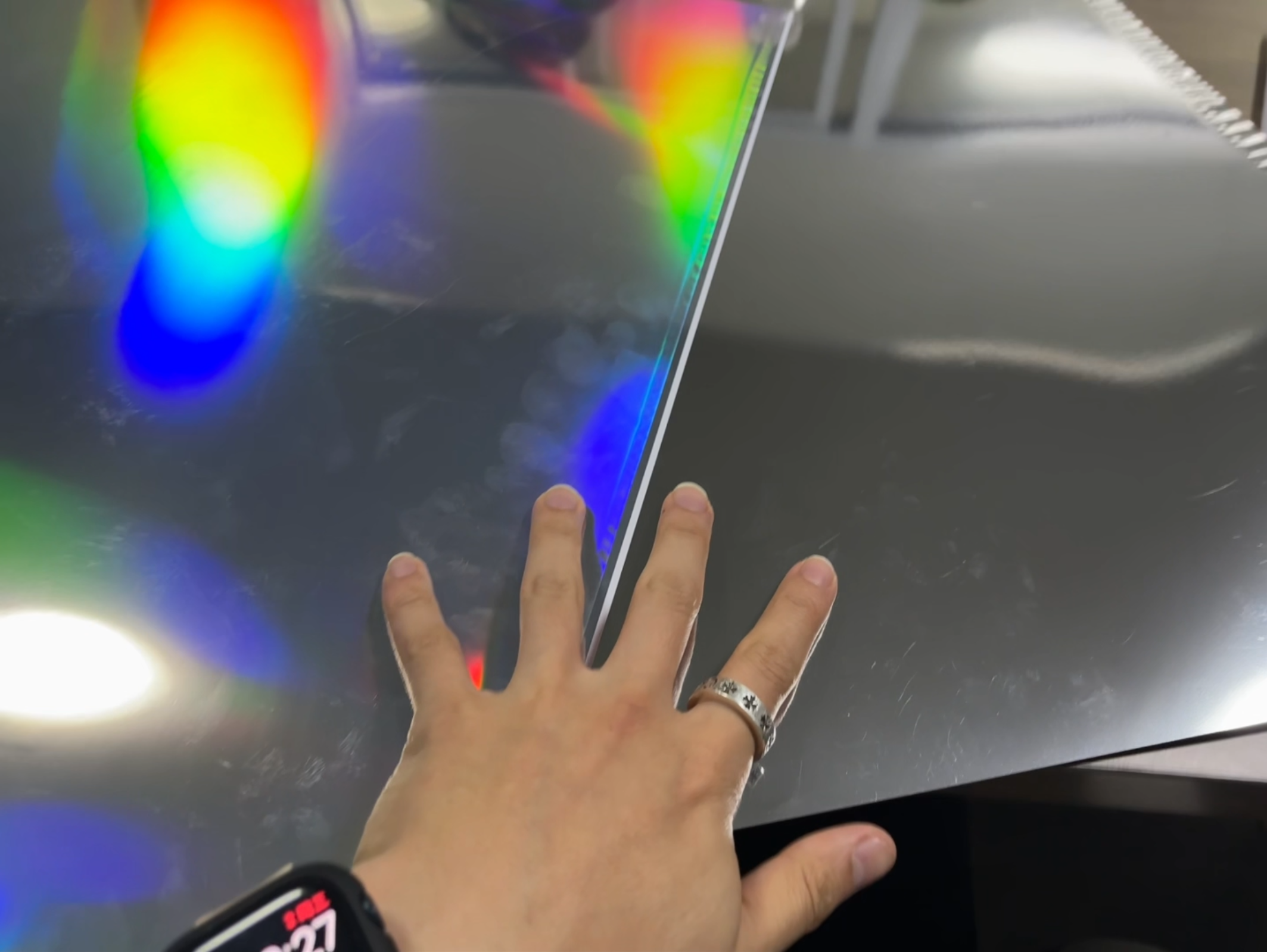

Metallic PVC Foil vs. Holographic PVC Foil

One of the most common questions from card manufacturers is which decorative effect should be selected.

The answer depends primarily on the desired card appearance and application.

Metallic PVC Foil is generally a good choice when the goal is a clean and sophisticated appearance.

Holographic PVC Foil is more suitable when the card needs stronger visual movement and a more distinctive optical effect.

What Is PVC Foil for Cards?

PVC Foil is a specialized PVC card material that combines a PVC core with functional and decorative layers.

Depending on the required card design, the structure can include a printable topcoat, clear polyester film, metallic or holographic layer, adhesive layer and PVC corestock.

A typical structure is:

Print-Receptive Topcoat → Clear Polyester Film → Metallic/Holographic Layer → Adhesive Layer → PVC Corestock

The different layers work together to provide both the visual appearance and the processing performance required for card manufacturing.

The decorative layer can create effects such as bright silver, rainbow, brushed aluminum and customized holographic patterns, while the printable surface allows manufacturers to add graphics, logos, text and other card designs.

XINHEBAO PVC Foil is available in thicknesses from 0.15 to 0.61 mm ±10%, with customized specifications available for different card constructions.

How Is PVC Foil Used in Card Manufacturing?

PVC Foil needs to work together with other card materials during the manufacturing process.

A typical production workflow may include the following steps.

Step 1: Select the PVC Foil

The manufacturer selects the appropriate thickness, color, surface finish and decorative effect.

For example:

Bright Silver + Gloss Surface

or

Rainbow Holographic + Customized Pattern

The choice depends on the final card design.

Step 2: Prepare the Artwork

Card graphics, logos, text, patterns and other visual elements are prepared according to the final card design.

Step 3: Printing

The printable surface can be processed using suitable offset or digital printing methods.

The printing process should be optimized according to the selected foil structure and ink system.

Step 4: Layer Assembly

The PVC Foil is combined with PVC core sheets and other required card layers.

The complete structure depends on the card type and design.

Step 5: Hot Lamination

The assembled materials are laminated under controlled temperature and pressure.

XINHEBAO provides the following typical reference parameters:

• Lamination Temperature: 130–150°C

• Pressure: ≥80 bar

• Hot Pressing: 25–30 minutes

• Cold Pressing: 10–20 minutes

Actual parameters should be adjusted according to the equipment, material structure and production conditions.

Step 6: Card Cutting

After lamination and cooling, the laminated sheet is cut into individual cards.

Step 7: Quality Inspection

The finished cards can then be inspected for:

• Surface appearance

• Color consistency

• Printing quality

• Lamination quality

• Flatness

• Edge quality

• Decorative effect

Why Use PVC Foil for Premium PVC Cards?

The appearance of a card is often an important part of its perceived value.

For a standard ID or access card, a conventional PVC sheet may be sufficient. However, for premium cards, gift cards, VIP cards and branded products, manufacturers often want a more distinctive surface.

PVC Foil can provide several advantages.

1. Creates a Premium Metallic Appearance

Metallic PVC Foil can create a reflective surface that gives cards a more premium and sophisticated appearance.

Bright silver and brushed aluminum effects are particularly suitable for modern card designs where a metallic appearance is required.

Manufacturers can also customize metallic effects according to their branding or product design.

2. Provides Holographic and Rainbow Effects

Holographic PVC Foil can create changing visual effects when the card is viewed from different angles.

Rainbow and holographic effects can make a card more visually attractive and help it stand out from standard printed PVC cards.

These effects are commonly considered for:

• Premium membership cards

• VIP cards

• Gift cards

• Promotional cards

• Branded cards

• Selected security-oriented card designs

3. Supports Conventional Card Printing

A decorative surface is only useful if it can also work effectively with the card manufacturer's printing process.

XINHEBAO PVC Foil features a printable surface designed for compatibility with common printing methods and inks.

The product has a surface tension of ≥36 dynes/cm, supporting ink adhesion and printing performance.

It can be used with processes such as:

• Offset printing

• Digital printing

• Hot lamination

This allows manufacturers to integrate the material into conventional PVC card production workflows.

4. Flexible Thickness Options

Different card structures require different material thicknesses.

XINHEBAO PVC Foil supports a thickness range of:

0.15–0.61 mm ±10%

This allows manufacturers to select a suitable material thickness according to their card structure, printing requirements and lamination process.

5. Stable Lamination Performance

Lamination quality is critical when producing multi-layer PVC cards.

The PVC Foil has a typical post-lamination peel strength of ≥6.0 N/cm, supporting reliable bonding between the functional layers and PVC core.

Proper material matching and lamination parameters are still necessary because actual performance can depend on the complete card structure and production equipment.

What Are Full-Face Foil Cards?

A full-face foil card uses a decorative foil or foil-effect material across a large portion or the entire visible surface of the card.

Compared with a conventional PVC card, full-face foil cards can create a more consistent and visually impactful appearance.

The foil effect can cover the background of the card while printed graphics, logos and text are incorporated into the final design.

This approach is particularly useful for brands that want their cards to have a strong visual identity.

PVC Foil can therefore be used as an important card material for manufacturers producing full-face foil cards with metallic, rainbow or holographic effects.

How Is PVC Foil Used in Card Manufacturing?

PVC Foil needs to work together with other card materials during the manufacturing process.

A typical production workflow may include the following steps.

Step 1: Select the PVC Foil

The manufacturer selects the appropriate thickness, color, surface finish and decorative effect.

For example:

Bright Silver + Gloss Surface

or

Rainbow Holographic + Customized Pattern

The choice depends on the final card design.

Step 2: Prepare the Artwork

Card graphics, logos, text, patterns and other visual elements are prepared according to the final card design.

Step 3: Printing

The printable surface can be processed using suitable offset or digital printing methods.

The printing process should be optimized according to the selected foil structure and ink system.

Step 4: Layer Assembly

The PVC Foil is combined with PVC core sheets and other required card layers.

The complete structure depends on the card type and design.

Step 5: Hot Lamination

The assembled materials are laminated under controlled temperature and pressure.

XINHEBAO provides the following typical reference parameters:

• Lamination Temperature: 130–150°C

• Pressure: ≥80 bar

• Hot Pressing: 25–30 minutes

• Cold Pressing: 10–20 minutes

Actual parameters should be adjusted according to the equipment, material structure and production conditions.

Step 6: Card Cutting

After lamination and cooling, the laminated sheet is cut into individual cards.

Step 7: Quality Inspection

The finished cards can then be inspected for:

• Surface appearance

• Color consistency

• Printing quality

• Lamination quality

• Flatness

• Edge quality

• Decorative effect

Applications of PVC Foil for Cards

PVC Foil can be used for a wide range of card products where appearance and branding are important.

Full-Face Foil Cards

Full-face foil cards are one of the main applications.

Metallic and holographic effects can be applied across the card surface to create a distinctive visual appearance.

Premium Membership Cards

Hotels, clubs, gyms, restaurants and other membership-based businesses can use metallic PVC cards to create a more premium customer experience.

VIP Cards

VIP cards often need to communicate exclusivity.

Silver, brushed aluminum and customized metallic effects can help create a premium visual identity.

Gift Cards

Gift cards are highly visual products, particularly in retail environments.

Rainbow and holographic PVC Foil can help gift cards attract attention and create stronger shelf appeal.

Loyalty Cards

Brands can use decorative PVC Foil to differentiate loyalty cards from ordinary plastic cards.

Promotional Cards

Promotional cards often require attractive designs that immediately capture attention.

Metallic and holographic effects can provide an additional design element for promotional campaigns.

Branded PVC Cards

Businesses can customize colors, surface finishes and decorative patterns to match their brand identity.

Security-Oriented Cards

Holographic effects can also be incorporated into card designs where visual differentiation or an additional security feature is required.

However, holographic material should normally be considered as one element of a broader security strategy, rather than a complete anti-counterfeiting solution on its own.

What Specifications Should You Consider When Buying PVC Foil?

For card manufacturers, appearance is only one part of material selection.

The following specifications should also be considered.

Thickness

The PVC Foil thickness needs to match the complete card structure.

XINHEBAO offers:

0.15–0.61 mm ±10%

with customized specifications available.

Surface Finish

Different surface finishes can create different visual effects.

Available options include:

• Gloss

• Matte

Decorative Effect

Manufacturers can select from:

• Bright Silver

• Rainbow

• Brushed Aluminum

• Holographic

• Customized Metallic Effects

Core Color

PVC core materials are available in:

• White

• Clear

• Customized Colors

Size

The current product specification supports widths and lengths up to 1000 mm, subject to the specific production requirements.

Lamination Performance

The foil should be evaluated together with the other card materials to ensure stable bonding and acceptable card flatness.

How to Choose the Right PVC Foil for Your Card Project?

Choosing the right PVC Foil starts with understanding the final card requirements.

Consider these five questions:

1. What visual effect do you need?

If you want a clean premium appearance, metallic foil may be suitable.

If you want a dynamic and eye-catching appearance, holographic or rainbow foil may be a better choice.

2. What is the final card thickness?

The foil thickness should be selected according to the complete card construction.

3. What printing process will you use?

Confirm whether the material is compatible with your existing offset or digital printing process.

4. What lamination process do you use?

The foil should be tested with your actual lamination equipment and other card layers before mass production.

5. Do you need a customized decorative effect?

If your card requires a specific metallic color, holographic pattern or surface finish, discuss customization with the material manufacturer before production.

Why Choose XINHEBAO PVC Foil?

XINHEBAO provides PVC, PETG, polycarbonate and other card base materials for professional card manufacturers.

For PVC Foil applications, the company provides:

Multiple Decorative Effects

Metallic, rainbow, brushed aluminum, holographic and customized effects are available.

Custom Thickness

Thickness can be customized according to the card structure and production requirements.

Custom Colors and Finishes

White, clear and customized colors are available, together with gloss or matte surfaces.

Printing-Friendly Surface

The printable surface is designed for compatibility with common card printing processes.

Stable Lamination Performance

The product is designed for multi-layer PVC card manufacturing and provides a typical post-lamination peel strength of ≥6.0 N/cm.

Manufacturer Support

XINHEBAO can provide material recommendations, samples and customized specifications according to specific card manufacturing requirements.

Final Thoughts

PVC Foil provides card manufacturers with more possibilities beyond conventional PVC card materials.

By combining a printable surface with metallic, rainbow, brushed aluminum and holographic effects, PVC Foil can help create premium and visually distinctive cards for different markets.

For full-face foil cards, metallic PVC cards, holographic cards, VIP cards, membership cards, gift cards and promotional cards, selecting the right PVC Foil can improve both the visual appearance and manufacturing performance of the final product.

The key is to select the appropriate thickness, surface finish, decorative effect, printing compatibility and lamination structure according to the final card design.

XINHEBAO PVC Foil supports customized thicknesses, colors, finishes and decorative effects, providing flexible material solutions for professional card manufacturers.

Looking for metallic PVC Foil or holographic PVC Foil for your next card project? Contact XINHEBAO for samples, specifications and customized card material solutions.
